Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

Name: Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave
Brand: Geomax
Price: 1 USD

Quality Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave wholesale

Brand Name : Geomax

Model Number : 150-660

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : HDPE

Type : 150-660

Color : Black

Welding space : 660mm

Thickness : 1.5mm

Height : 150

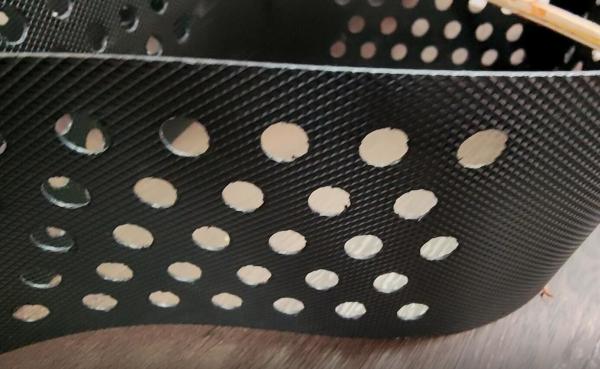

Surface : Perforated

Standard : ASTM

Contact Now

PRODUCT DESCRIPTION

Hdpe Geocell Retaining Walls Geocell Grass Pave Made In China

Product Introduction

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of
  standard construction materials and erosion-control treatments.
  Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material.
  When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure
  into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in
  place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.



Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
