Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection 500mm

Name: Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection 500mm
Brand: Geomax
Price: 1 USD

Quality Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection 500mm wholesale

Brand Name : Geomax

Model Number : 1.5-100-500

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Raw Material : HDPE Plastic

GeoMax Standard : ASTM

Cell Height : 50mm-200mm

Geomax Model : GM500

Color : Black, green, brown, Black Yellow White Green, Green or as per request

Welding Space : 330-712mm

Cell Thickness : 1.5mm

Geocell Surface : Textured&Perforated

Contact Now

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 500mm

Product Introduction

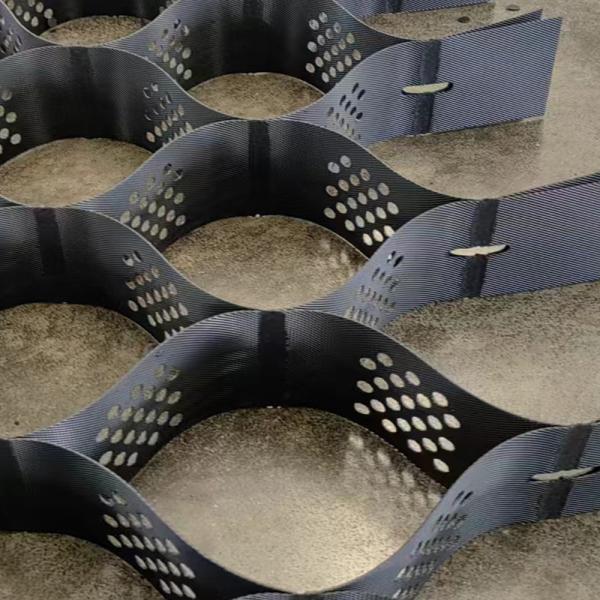

HDPE Geocell is a flexible three-dimensional, honeycomb like structures made from high-density polyethylene(HDPE) strips whichare ultrasonically bonded together to form an extremely strong configuration.HDPE Geocell System can be filled with a widerange of material: aggregate, concrete, sand, soil, etc.
HDPE Geocell is engineered for soil stabilization applications, it is used to help improve the performance of standard construction materials and erosion-control treatments.
HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:

1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm
4. Appearance: smooth / textured

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection 500mm

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES
